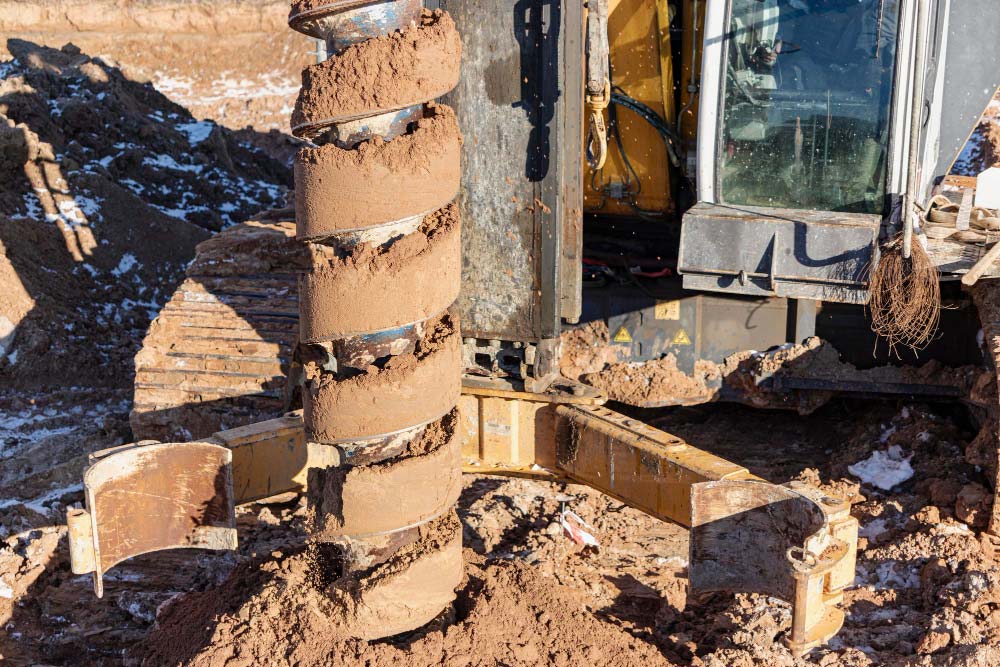

When Are Secant Pile Walls the Best Choice for an Excavation?
Secant pile walls are often selected for deep excavations where strong earth retention, limited ground movement and a relatively continuous retaining barrier are required. They are particularly useful on constrained urban sites, near existing buildings, and in excavations where groundwater conditions need to be carefully managed.
A secant pile wall is formed by constructing a series of overlapping bored piles along the excavation perimeter. The overlapping arrangement creates a continuous wall that can retain the surrounding ground while allowing excavation to proceed within the supported area.
For projects in Lebanon, secant pile walls can be an effective excavation-support solution where site boundaries are tight, neighboring structures are sensitive, excavation depths are significant or groundwater complicates below-ground construction.
At Albitar Foundations, the selection of a secant pile wall is considered in relation to the complete site condition, including soil and rock profile, groundwater, excavation depth, adjacent structures, construction access and the required excavation sequence.
What Is a Secant Pile Wall?
A secant pile wall is an earth-retention system constructed from a sequence of overlapping bored piles. The piles are installed so that each new pile intersects with the neighboring pile, creating a relatively continuous retaining wall.
The system commonly includes primary and secondary piles installed in a planned sequence. Depending on the engineering design, selected piles may contain reinforcement to provide the structural resistance required to support the excavation.
Once the wall is constructed, excavation can proceed inside the retained area. Depending on depth and loading conditions, the wall may also be supported by ground anchors, internal bracing or other structural systems.
When Are Secant Pile Walls a Good Choice?
Secant pile walls are not required for every excavation. They become particularly attractive when a project combines challenging ground conditions with strict requirements for excavation support and movement control.
Secant pile walls may be a suitable option when:
- The excavation is relatively deep
- The site is close to existing buildings
- Property boundaries leave little room for sloped excavation
- A near-continuous retaining wall is required
- Groundwater is present around the excavation
- Ground movement needs to be carefully controlled
- The project is located in a dense urban area
- Basements or underground structures are planned
- Excavation takes place close to roads or infrastructure
- Conventional open excavation is not practical
Why Are Secant Pile Walls Well Suited to Deep Excavations?
As excavation depth increases, lateral soil pressures and the influence of surrounding loads generally become more significant. The retaining system therefore needs sufficient structural capacity and continuity to support the surrounding ground.
Secant pile walls can provide a stiff retaining system that is well suited to deep excavation projects. They can also be combined with anchors or bracing when additional lateral restraint is required as excavation progresses.
This makes them useful for projects such as deep basements, underground structures, infrastructure works and excavations surrounded by existing development.
Are Secant Pile Walls Suitable Near Existing Buildings?
Yes. One of the main reasons secant pile walls are considered for urban excavation is their ability to provide substantial earth retention close to neighboring structures.
When excavation takes place beside an existing building, excessive soil movement could potentially affect neighboring foundations. A suitably designed retaining system helps manage deformation and provides controlled support during excavation.
Nearby conditions that may influence the design include:
- Distance between the excavation and adjacent buildings
- Foundation type and depth of neighboring structures
- Existing building condition
- Excavation depth
- Ground stiffness
- Groundwater conditions
- Loads acting close to the excavation edge
These factors should be evaluated as part of the engineering design rather than assuming that one retaining system will perform the same way on every site.
How Do Secant Pile Walls Help on Restricted Urban Sites?
Dense urban sites often provide very limited space for excavation. Buildings, roads, utilities and property boundaries may be located only a short distance from the proposed excavation.
In these conditions, sloping the excavation sides may require more space than the project has available.
A secant pile wall allows the excavation perimeter to remain much closer to vertical, helping maximize usable excavation space while supporting the surrounding ground.
This can be particularly valuable for basement construction and developments where nearly all available site area needs to be used.
Can Secant Pile Walls Help Control Groundwater?
Yes. Because the bored piles overlap, a secant pile wall creates a more continuous barrier than some open retaining systems. This can help reduce groundwater inflow into an excavation.
However, a secant pile wall should not automatically be described as completely watertight. Actual groundwater performance depends on pile overlap, construction tolerances, wall depth, soil conditions, joints between piles and the hydrogeological conditions surrounding the excavation.
Some projects may therefore require a combination of secant piling and construction dewatering.
Groundwater considerations may include:
- Groundwater level
- Soil permeability
- Excavation depth
- Expected water pressure
- Depth of the retaining wall
- Potential groundwater inflow below the wall
- Effects of groundwater lowering on neighboring structures
How Is a Secant Pile Wall Constructed?
Secant pile wall construction requires careful positioning, drilling and sequencing so that adjacent piles overlap as intended.
A typical construction sequence may include:
- Establishing the wall alignment
- Preparing working platforms and drilling access
- Constructing the initial primary piles
- Allowing the primary piles to reach the required condition
- Drilling secondary piles between the primary piles
- Cutting into the adjacent primary piles to create the required overlap
- Installing reinforcement where specified
- Completing the pile wall around the excavation perimeter
- Excavating progressively inside the retained area
- Installing anchors or bracing where required by the design
The actual sequence and pile configuration depend on the project specifications and engineering design.
What Are Primary and Secondary Secant Piles?
Secant walls are usually constructed in an alternating pile sequence.
Primary Piles
Primary piles are typically installed first and establish the initial wall alignment. Their material and reinforcement requirements depend on the particular secant wall design.
Secondary Piles
Secondary piles are installed between the primary piles. During drilling, they intersect or cut into the neighboring primary piles to form the overlapping secant arrangement.
The secondary piles may contain structural reinforcement where required to provide bending resistance and support the excavation.
Do Secant Pile Walls Require Ground Anchors?
Not always. Whether a secant pile wall requires additional support depends on wall height, excavation depth, pile dimensions, surrounding loads, ground conditions and structural design.
Some shallower systems may act as cantilever walls. Deeper excavations may require additional support through ground anchors, tiebacks or internal bracing.
When anchors are used, they transfer part of the lateral forces from the retaining wall into suitable soil or rock behind the excavation.
Secant Pile Walls vs Soldier Pile Walls
Both systems can provide excavation support, but they behave differently and may suit different site conditions.
Secant Pile Walls
- Use overlapping bored piles
- Create a relatively continuous retaining barrier
- Can help reduce groundwater inflow
- Are often considered for deep urban excavation
- Can provide substantial wall stiffness
Soldier Pile Walls
- Use structural piles installed at intervals
- Require support or facing between piles
- Are generally less continuous
- Can be highly practical for suitable ground conditions
- Can be combined with anchors, lagging or shotcrete
The better system depends on project conditions rather than one method being universally superior.
Secant Pile Walls vs Sheet Piling
Sheet piling uses interlocking prefabricated sections that are typically driven or vibrated into the ground, while secant pile walls are constructed by drilling overlapping piles.
Sheet piles can be efficient where ground conditions and vibration restrictions allow installation. Secant piles may be preferable where vibration needs to be limited, deeper drilling is required or the ground profile is better suited to bored construction methods.
Site access, nearby structures, groundwater and geological conditions should all be considered when comparing these systems.
What Types of Projects Use Secant Pile Walls?
Secant pile walls can be used across a broad range of construction and infrastructure projects.
Common applications include:
- Deep basement excavations
- Residential developments
- Commercial buildings
- Urban construction sites
- Infrastructure excavations
- Underground structures
- Excavations beside existing buildings
- Sites affected by groundwater
- Projects close to roads or property boundaries
What Ground Conditions Are Suitable for Secant Piling?
Secant piling can be used across different ground conditions, but drilling methods, pile dimensions and construction procedures need to respond to the actual soil and rock profile.
The ground investigation may identify layers such as fill, clay, sand, gravel, weathered material or rock. Groundwater can add another level of complexity.
These conditions influence:
- Drilling equipment selection
- Pile diameter
- Pile depth
- Required overlap
- Reinforcement requirements
- Construction sequence
- Need for temporary casing or other drilling support
What Should Be Considered Before Choosing a Secant Pile Wall?
The decision should be based on the complete excavation environment rather than excavation depth alone.
Important considerations include:
- Geotechnical investigation results
- Excavation depth and dimensions
- Groundwater conditions
- Nearby buildings and foundations
- Allowable wall movement
- Property boundaries
- Anchor availability and easement restrictions
- Internal bracing requirements
- Drilling access
- Equipment working space
- Construction schedule
- Integration with the permanent structure
Secant Pile Walls for Excavation Projects in Lebanon
Construction projects in Lebanon often involve a combination of restricted sites, neighboring buildings, varied geological conditions and demanding excavation requirements.
In dense developed areas, excavation may need to extend close to property boundaries while limiting effects on adjacent structures. On other sites, groundwater or changing soil and rock conditions may influence the choice of retaining system.
For these reasons, secant pile walls can be an important option for deep excavation and earth-retention projects in Lebanon.
Albitar Foundations provides secant pile wall construction as part of its specialist geotechnical engineering, shoring and excavation-support capabilities. Secant piling can also be coordinated with ground anchors, excavation, construction dewatering, deep foundations and other below-ground works according to project requirements.
Frequently Asked Questions About Secant Pile Walls
What is the main purpose of a secant pile wall?
The main purpose of a secant pile wall is to retain surrounding ground during excavation. Its overlapping bored piles form a relatively continuous wall that can provide earth retention, structural support and, depending on site conditions, help reduce groundwater inflow.
When is a secant pile wall better than a soldier pile wall?
A secant pile wall may be preferred where greater wall continuity, stiffness or groundwater control is required. Soldier pile systems can remain highly effective on suitable sites. The choice depends on excavation depth, ground conditions, groundwater, nearby structures and project requirements.
Can secant pile walls be used for deep basements?
Yes. Secant pile walls are commonly considered for deep basement excavation, particularly where space is restricted or neighboring buildings are located close to the excavation perimeter.
Are secant pile walls waterproof?
Secant pile walls can reduce groundwater inflow because the bored piles overlap, but they should not automatically be assumed to be completely waterproof. Groundwater performance depends on wall construction, pile overlap, geological conditions, wall depth and project-specific requirements.
Does Albitar Foundations provide secant pile wall services in Lebanon?
Yes. Albitar Foundations provides secant pile wall construction in Lebanon as part of its specialist shoring, piling and ground-engineering services. The work can be coordinated with excavation, anchors, dewatering and foundation construction according to the requirements of each project.
So, When Is a Secant Pile Wall the Best Choice?
A secant pile wall becomes a strong candidate when an excavation is deep, space is limited, nearby structures require careful protection, a relatively continuous retaining system is needed, or groundwater makes excavation support more challenging.
It is particularly valuable where several of these conditions occur at the same time.
However, the final decision should always be based on site-specific engineering. Soil and rock conditions, groundwater, excavation geometry, structural loading, neighboring buildings and construction access all influence whether secant piling is the most appropriate solution.
